Mixers

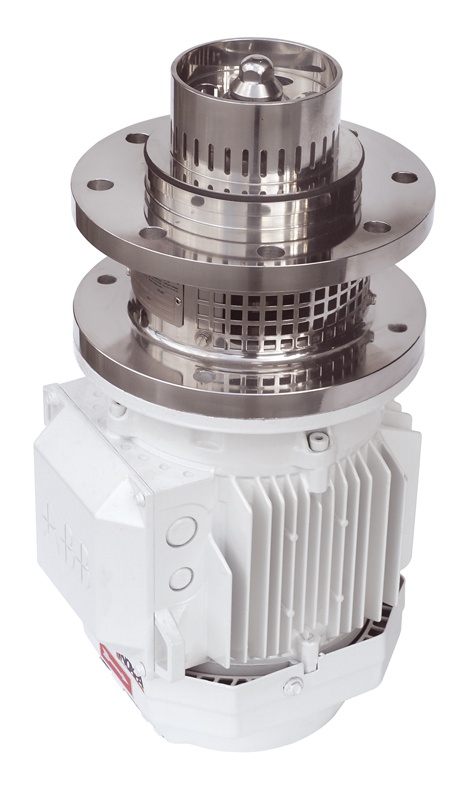

Tank Bottom Mixer ME-6100

The ME-6100 series of the high shear bottom of the tank mixers present a highly hygienic solution for the processes ofdispersion, emulsifying, homogenisation and disintegration of solids in the food-processing, cosmetics, pharmaceutical and fine chemistry industries.

These mixers can be used either in open or closed tanks at atmospheric pressure or under pressure/vacuum.
The bottom of the tank mixers are designed for the applications of the highly viscous media and intended for work with anchor type agitators.

Operating principle

The high speed and adjusted tolerances between the rotor and the stator result in high suction potential, the product is suctioned and driven to the centre of the head.
The product is suctioned from the upper part of the head and the rotor thrusts it radially.
Passing through the opening of the stator the product is mechanically sheared, the particles are sheared by the rotor at 20 m/s. And finally this flow is hydraulically sheared leaving the stator through the slots at a high speed.





Other Mixers

The ME-4100 series of the inline high shear mixers offers a possibility o pump, disperse, homogenize and emulsify products with one and the same equipment. Read more...
The 8100X series multitooth mixers are employed in the applications requiring high shear for achieving a thorough emulsification. Read more...
