Agitators

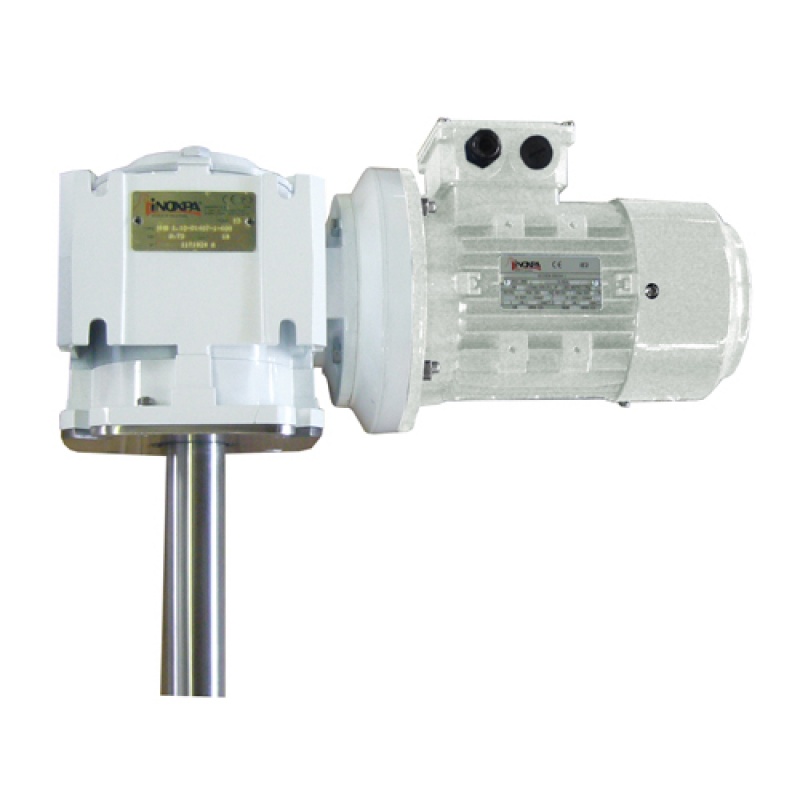

Vertical Agitator NHS

The NHS agitators are vertical agitators with worm gearmotor.

They can be used in mixing, dissolution and maintenanceprocesses where a mild to medium mixing is required. This agitator is designed for the food-processing, cosmetic and pharmaceutical industries and it is provided with the most suitable finish for each industry.
The NHS agitator can be used in tanks of up to 10.000 L with products of medium to high viscosity.

Operating principle

The agitators are installed inside the tank either centrally with current deflectors (baffles), or offset so that the position itself prevents the rotation of the mixed product. The rotation of the propeller makes the fluid flow to the bottom and then up to the surface of the product along the walls of the tank.

The effect is enhanced if the bottom of the tank is curved.





Other Agitators

The bottom side entry agitators are used in process and storage tanks in the applications of the food-processing industry. Read more...
The range of the BCI agitators presents vertical direct motor-driven agitators. Read more...
